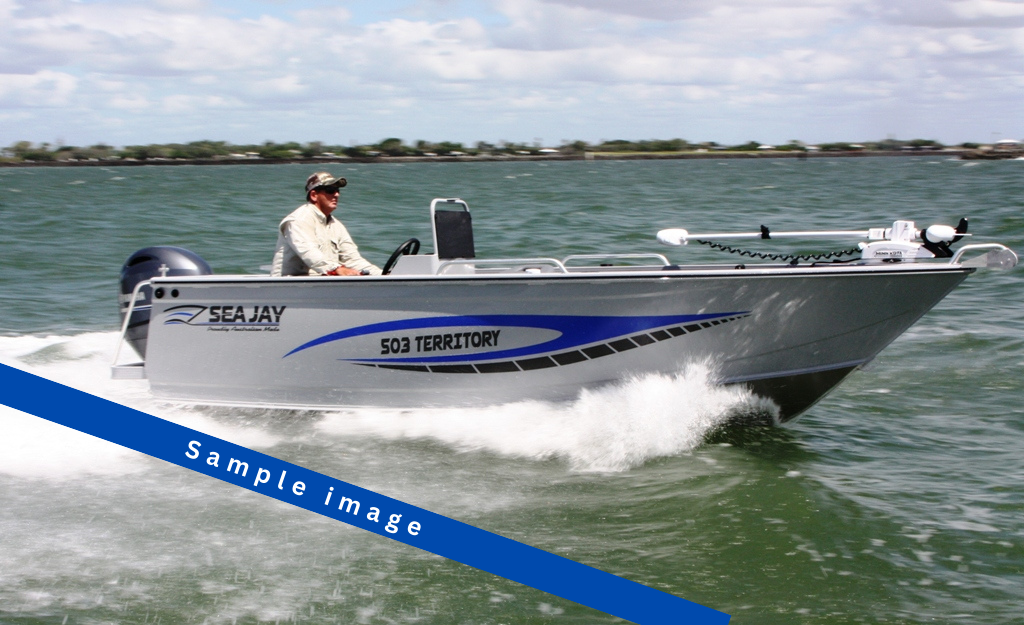

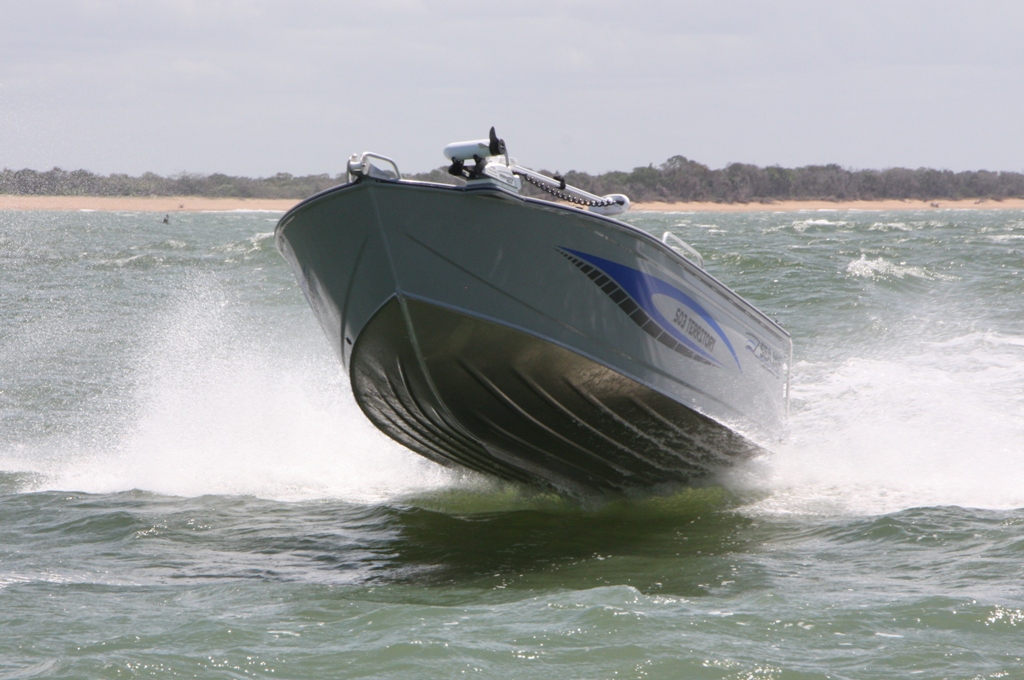

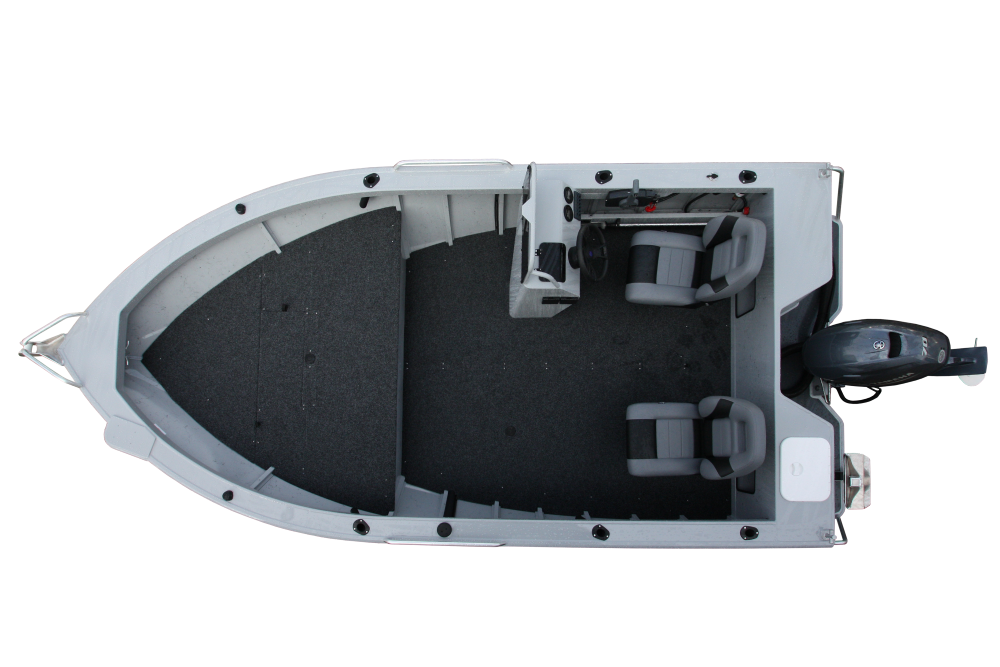

SEA JAY 503 TERRITORY SIDE CONSOLE – GREY - YAMAHA F90
Made here in Queensland - Sea Jay is a family owned and operated company. For over 30 years, the name ‘Sea Jay Aluminium Boats’ has become renowned for strength, quality workmanship and customization. Sea Jay TERRITORY takes sports fishing options to the next level. Based on the NexGen Adrenalin Hull this exciting and versatile new model gives a wide range of options for anglers. The larger front casting deck incorporates an anchor well under the deck giving more deck space for lure casting or tossing a cast net. The Ultimate Edge Transom with more ribs for extra strength gives this model the option to handle rougher water while the wide body with reverse chines gives better performance and allows better small water access.
Ready to Fish Package includes:
- Sea Jay 503 Territory Side Console – Grey
- 90HP Yamaha
- Sea Jay (Alloy) Trailer
- Garmin 95sv Sounder
- Safety Gear
- Boat and Trailer Registrations
BOAT SPECIFICATIONS 503
- Bottoms (mm) 3.0
- Plate Sides (mm) 3.0
- Beam (m) 2.32
- Depth (m) 1.29
- Depth Inc Screen (m) 1.6
- LOA (m) 5.26
- Floor Ribs 12
- No. Of Persons 5
- Weight Approx (kg) 493
- Max Hp 90
- Max Motor Weight (kg) 175
BOAT FEATURES
- ADRENALIN HULL NEXGEN
- Anchorwell
- Stainless Steel Shut Off Valve On Bait Tank Pick Up
- Battery & Storage Area in Stern
- Boarding Ladder - Heavy Duty
- Bollard 3
- Bow Sprit & Roller
- Bungs 38mm 2
- Console has Drink Holders & Glove Box Fitted
- Console Side / Centre with Screen and Shelf
- Drink Holder 2
- Electric Motor Plate – Extended Off Gunwhale
- Floor – Carpeted Plywood
- Front Casting Platform with 5 x Hatches
- Flotation - Under Floor
- Floor (Low) Under Front Cast
- Gunwhale Rubber Insert
- Keel – External
- Live Bait Tank Plumbed - Alloy
- Reverse Chine
- Rod Holders Plastic 6
- Side Pockets Starboard Side
- Vertical Mount Rail Blazer Rod Holder Port Side 3
- Spray Chines
- Steering - Mechanical (3 Spoke Wheel)
- Towing Eye (Double)
- Transducer (Dual) Bracket
- Wide Side Decks
- Deluxe Bait Board
TRANSOM
- Longshaft
- Fuel Filter Bracket Starboard Side
- Transom Tie Downs
FUEL TANK
- Under Floor / Deck Fill / Gauge (ltr) 90
RAILS
- 25mm Low Bow Rails
- 25mm Low Mid Rails
- 25m Rear Transom Rails
- Console Screen Grab Rail
SEATS
- Deluxe Seats - Upholstered Folding Swivel 2
- Seat Sockets 4
ELECTRICAL
- Battery isolator and battery box/holder
- 6 Gang Switch Panel / Bilge Pump / Navigation, Stern & Anchor Lights
Call our Sales Team for more information 07 4774 3777 or email sales@townsvillemarine.com.au
